• FASTER STARTS / CUTS TIME ONTO PLANE

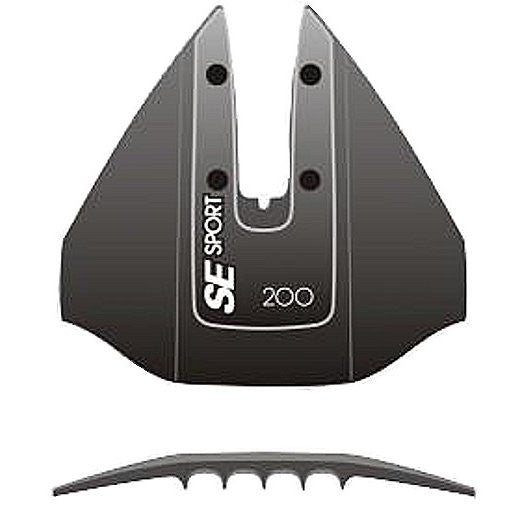

SE SPORT 200
- "What size motor or outdrive will it fit?"
Our smaller 200 model is recommended for outboards from 8-40 HP. It will fit all outboards and sterndrives larger than 40 HP except Mercury 40, 50, and 60 four strokes. There are some smaller outboards (down to 4 HP) that it will fit as well.

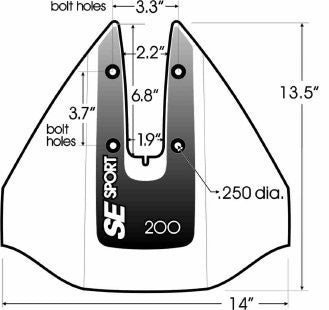

- "What are the dimensions of the SE Sport 200?"
14.3 inches wide, 13.5 inches nose to tail.
SE SPORT comes with all the hardware you need: four stainless bolts and locking nuts, 4 stainless washers, and 4 rubber washers.
Quick and easy to install using drill, screwdriver and socket wrench.
1. Centre the SE Sport on the top of the cavitation plate. Move the SPORT forward (toward the boat) until any further movement would tilt the Sport up. To avoid drilling into a trim tab/anode, placement to the rear of this position will not reduce performance. Some outboards, including Honda® (except for the 75HP and 90HP models), will require a slight cut or bigger notch in the "yoke" area of the SPORT. This is easily accomplished with a small saw or grinder and will not affect the durability or warranty of the SPORT. Remove the SPORT after marking the four holes.
Use the locking nuts only once in the assembly. Reusing them can cause the locking insert to fail. Most hardware stores stock stainless locking nuts if reassembly is required. Be certain the bolt reaches the nylon insert in the nut.
The Volvo SX with the single, non-exhaust cavitation plate may be mounted without using the enclosed rubber washers. By moving the SE SPORT away from the hole/rubber stopper in these plates, the enclosed hardware will fit.
Volvos 280, 290, DPS,DPR, DPH and the SX models with the large anode on top of the cavitation plate and the exhaust through the plate require two stainless bolts of 2-1/2" length. Stainless fender washers are recommended for the bottom of the exhaust plate. The 2-1/2" bolts will extend through the exhaust cavity. If necessary, reverse any anode on the cavitation plate to position the wide end of the anode closest to the boat. Not recommended for Volvo OceanX drive.
