HyDrive's home is Australia where recreational and commercial boats often operate days from onshore support. Systems and components are tough, reliable, made from quality materials and designed for easy on the water serviceability. HyDrive has built an enviable worldwide reputation, in addition to being used by experienced recreational sailors systems can be found on Pilot boats, commercial fishing vessels and Olympic Sailing Team support RIBs etc.. Want a high quality dependable steering system? Fit HyDrive.

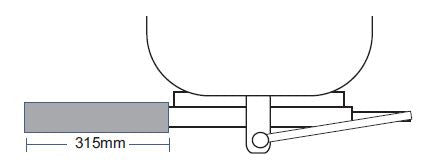

Introducing the HyDrive Model 212T Sport balanced cylinder which offers the power and reliability of hydraulic steering at prices which are more than competitive with many mechanical systems. This compact tube-mount cylinder is capable of handling up to 135hp (single installation) or 250hp (twin Counter Rotating). It attaches directly to the outboard motor's tilt-tube just like the old push-pull cable steering. At the other end it connects to the tiller arm of the outboard using the standard drag-link that already connects the cable. It also attaches to Stern Drives in the same manner, and can be used on Stern Drive Power steering cylinders making dual stations very simple.
Features:
This COMKIT-SPORT side mount kit is designed to be used with standard outboard motor drag-link supplied with the engine - NOT included in the kit as each outboard manufacturer and model has different drag-link design - this drag link is probably already on your outboard.

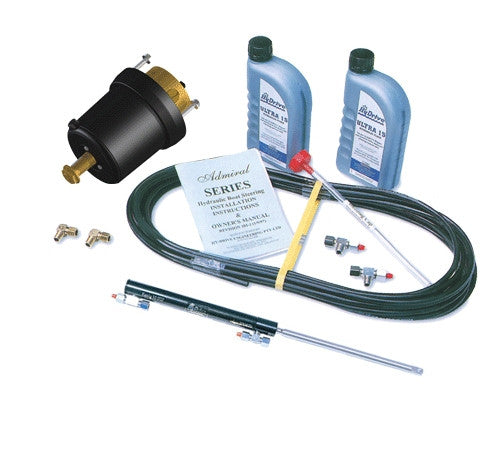

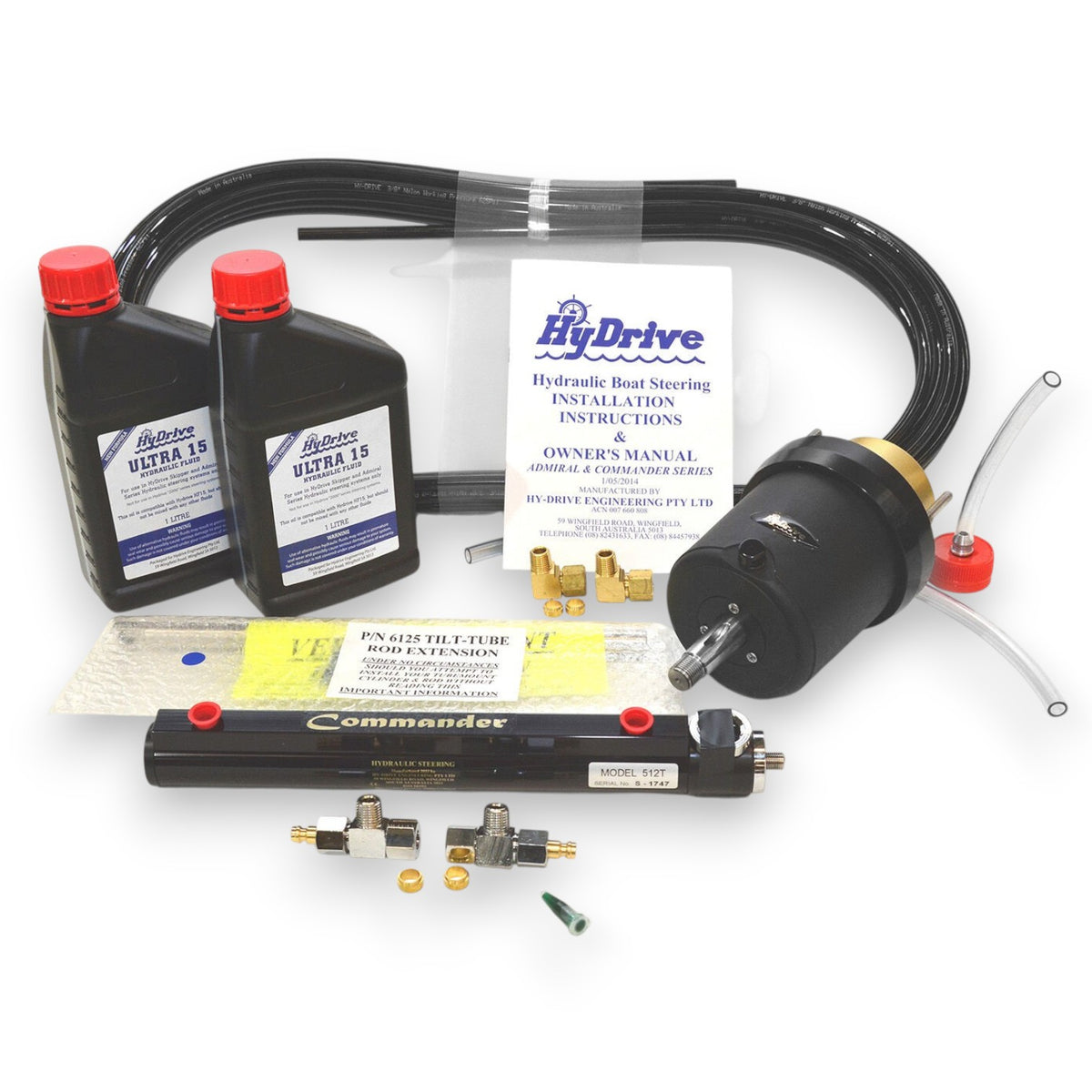

Includes: The ComKit SPORT comes in a single carton and include the following items:-

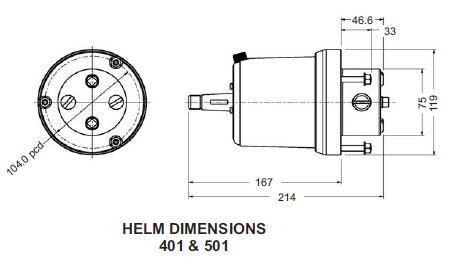

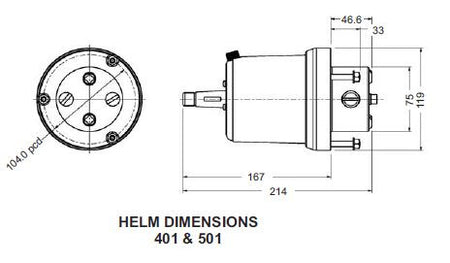

- The Commander Kits include the 501N8 Helm - 28cc/rev In-built Lock valve Maximum working pressure:- 800psi Absolute maximum pressure:- 1000psi
- Model 212TN8 cylinder - Capacity:- Capacity:- 77cc Stroke:- 203mm Weight:- 2Kg
- 2 litres ULTRA-15 fluid
- 15Mtrs 3/8” OD Nylon tubing
- Bleeding Kit
- All fittings
- Installation Manual
- Packed weight 11Kg (Complete Boxed Kit)
Note:**Unit designed to be used with standard outboard motor drag-link supplied with the engine. Not included in the kit as each outboard manufacturer and model has different drag-link design..
In short - you get everything except a steering wheel. What could be simpler. No complicated part numbers - just a simple KIT number.
Please note that some Hydrive products are held in a remote warehouse, so it may take a few more days for delivery. If your requirement is urgent, please call us before ordering on 01980-624512.
- Type Steering & Controls
- Vendor HyDrive
- SKU COMKITSPORT
No compatibility information available.
