HyDrive

HyDrive Admiral Remote Mount Steering Kit. Twin Outboard up to 600hp (OBKIT4)

Backorder
SKU: OBKIT4
(0)
£1,280.00 inc. VAT
This product is available for backorder. The approximate shipping time for this product is 10 days.

Got questions?

Feel free to Get in touch

Ask an expert

Email 01980624512

HyDrive's home is Australia where recreational and commercial boats often operate days from onshore support. Systems and components are tough, reliable, made from quality materials and designed for easy on the water serviceability.  HyDrive has built an enviable worldwide reputation, in addition to being used by experienced recreational sailors systems can be found on Pilot boats, commercial fishing vessels and Olympic Sailing Team support RIBs etc.. Want a high quality dependable steering system? Fit HyDrive.

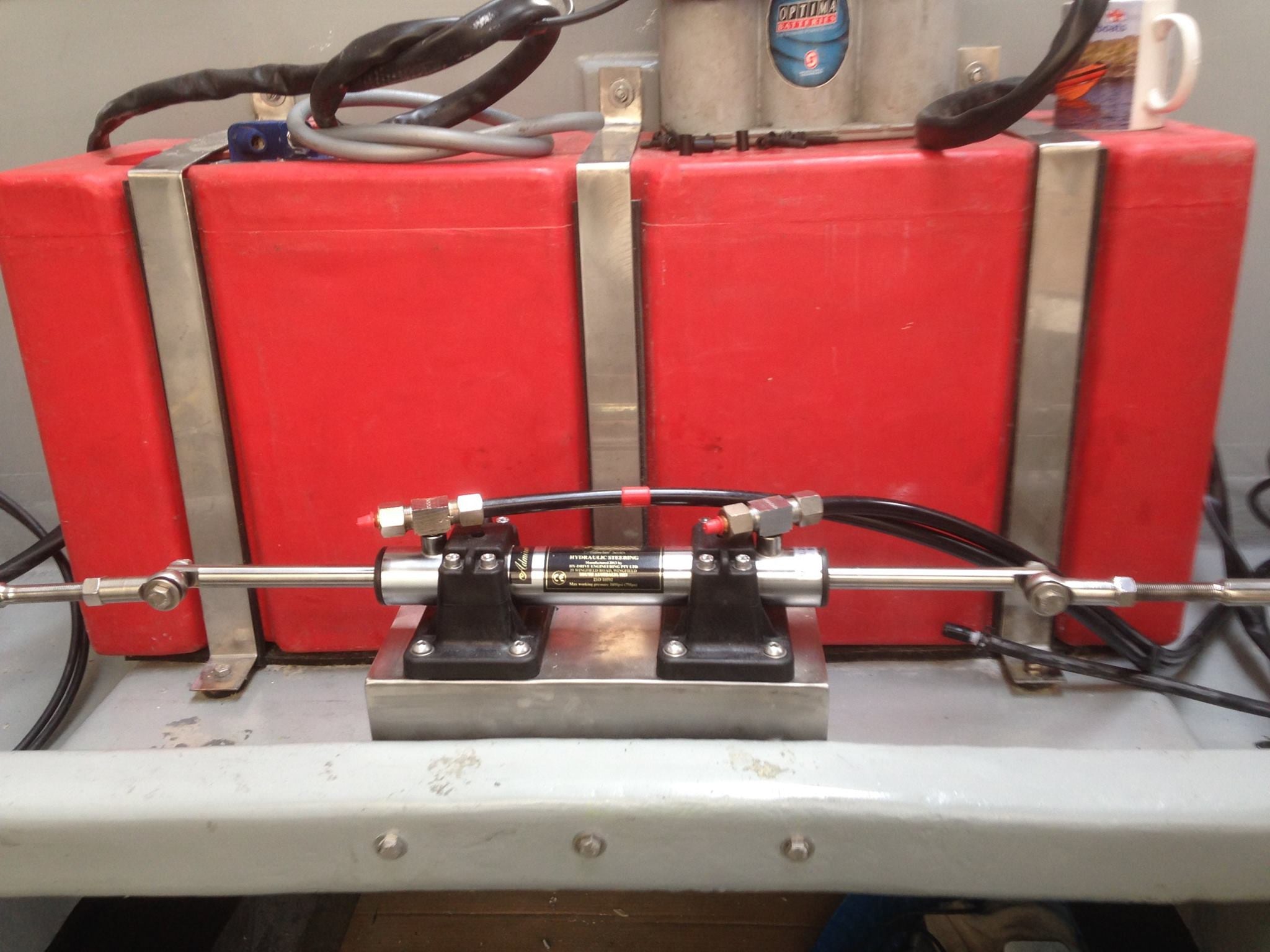

The HyDrive Admiral Series offers a chromed brass bronze and stainless steel cylinder with a stainless shaft helm - truly built for the toughest marine environment. The OBKIT4 remote mount double end cylinder kit is intended for motor catamarans, with twin outboards up to 300hp (same rotation) or 600hp (counter rotating).

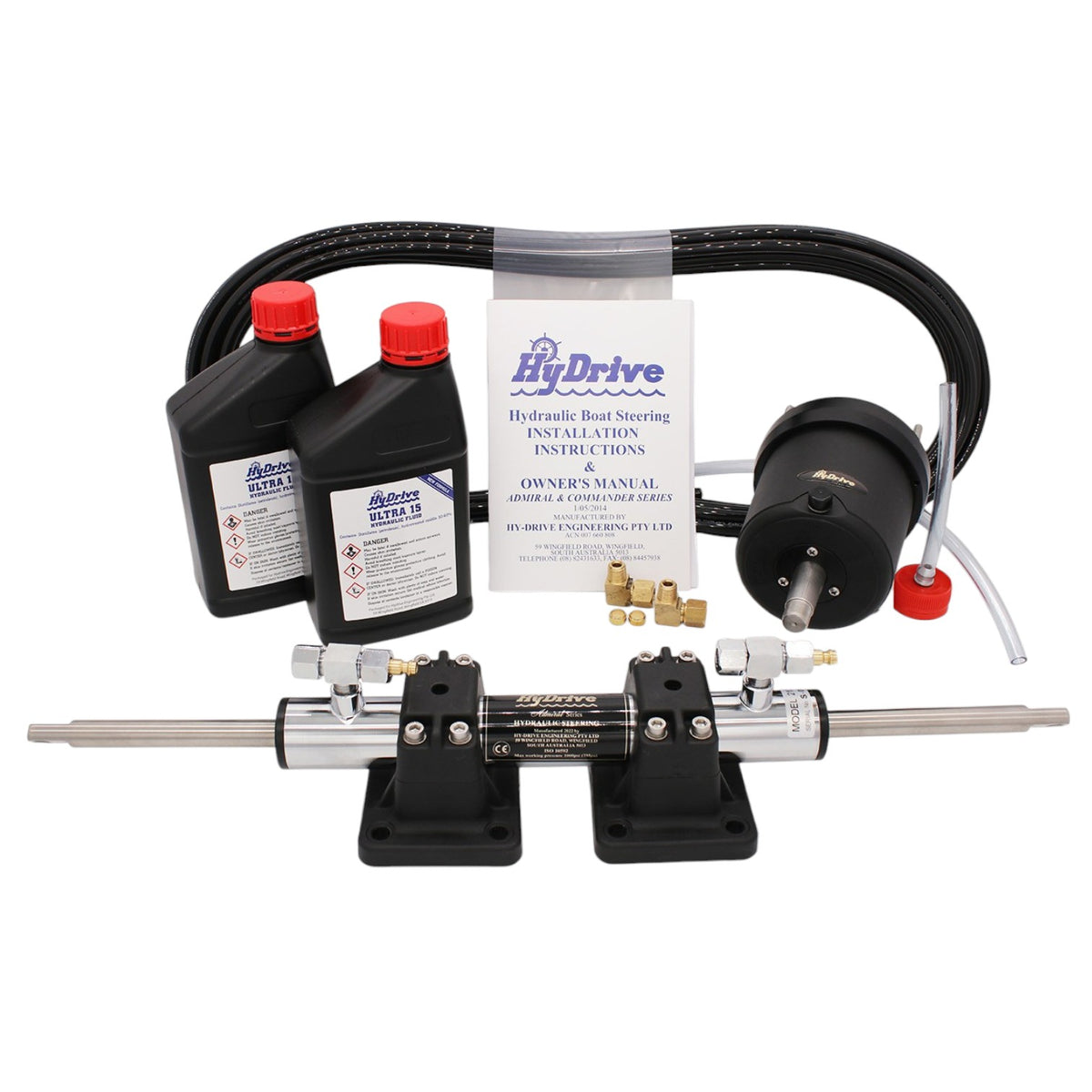

Kit Includes:

  • 401Helm:  28cc/rev In-built Lock valve

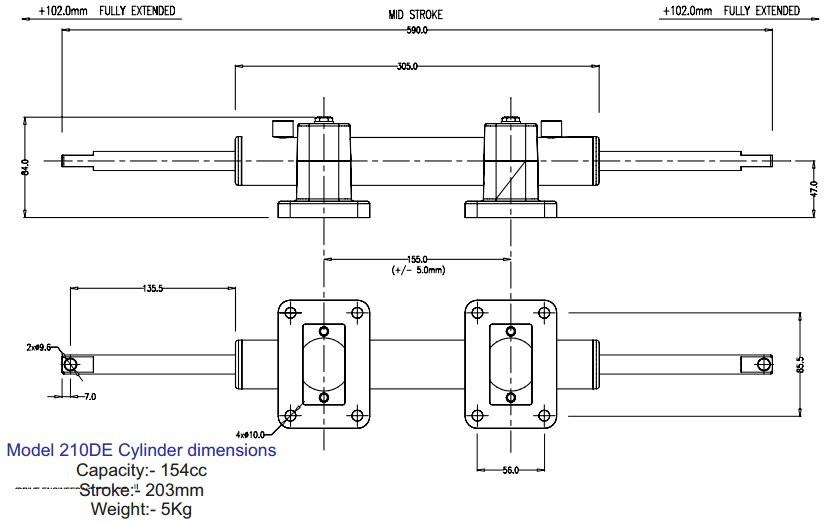

  • Model 210DE cylinder: Capacity:- 154cc Stroke:- 203mm
  • 2 litres ULTRA-15 fluid
  • 12 mtrs 3/8” OD Nylon tubing
  • Bleeding Kit
  • All fittings

WHEEL TURNS lock to lock with the standard 401 helm = 5.5. Alternatively, the 402 helm can be supplied = 4.4 Turns. Please specify upon ordering.

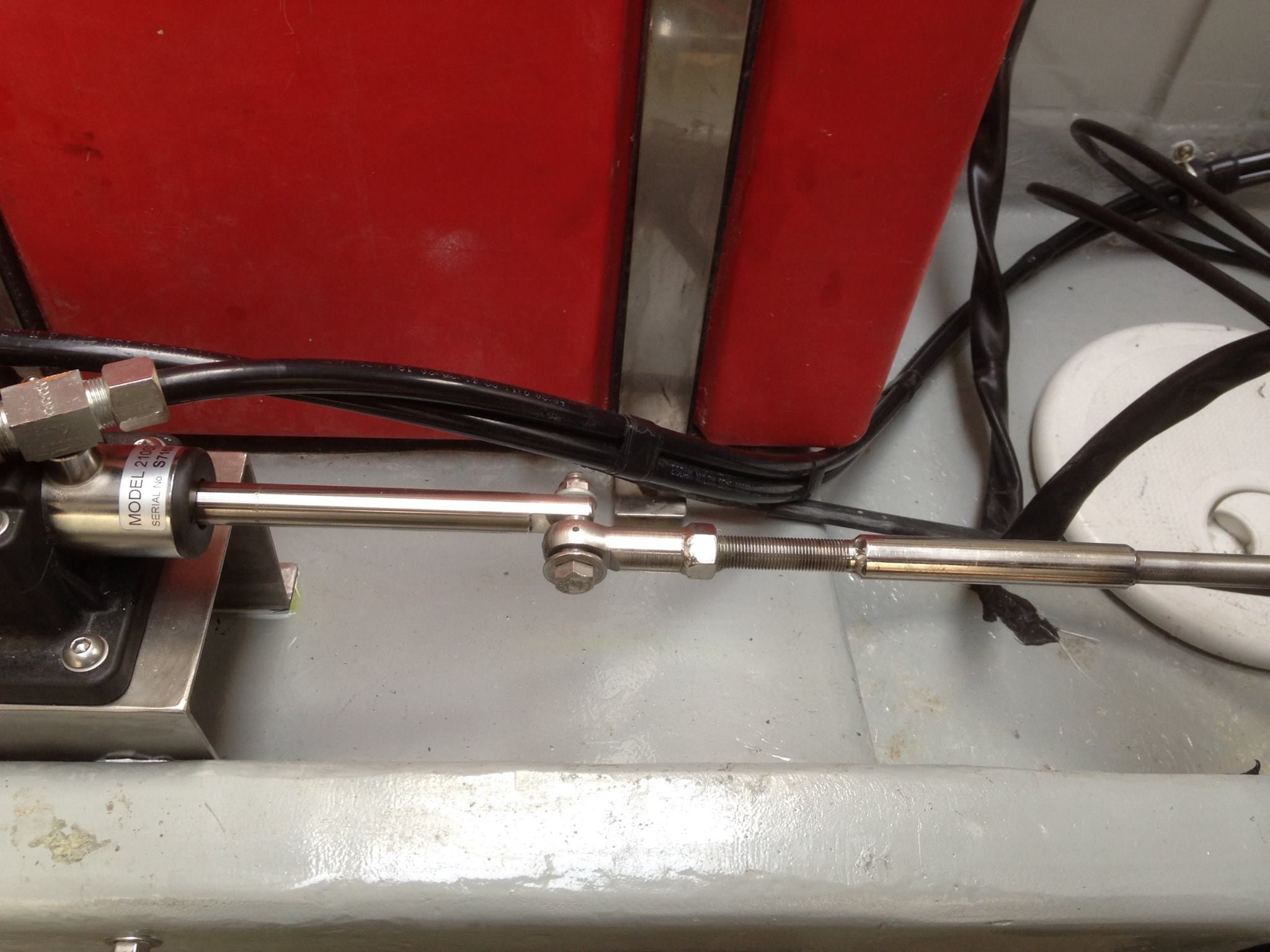

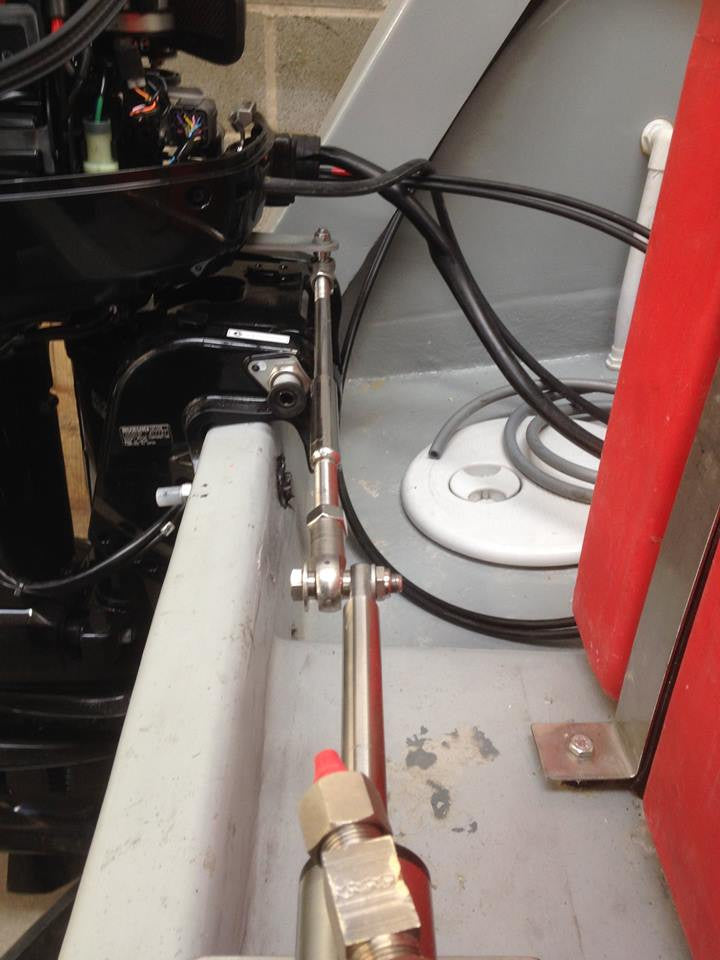

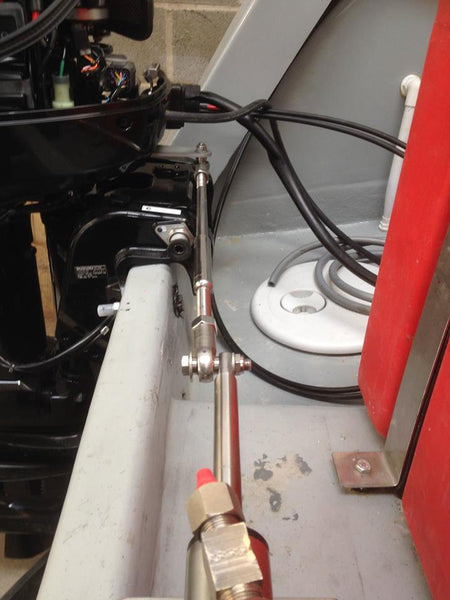

Note: OBKIT4 requires rose-jointed tie bars from the cylinder to each outboard to complete. These are not offered by ourselves and need to be bespoke made depending on the installation.

Please note that some Hydrive products are held in a remote warehouse, so it may take a few more days for delivery. If your requirement is urgent, please call us before ordering on 01980-624512.

DataSheet
  • Type Steering & Controls
  • Vendor HyDrive
  • SKU OBKIT4
  • Barcode 57981187

No compatibility information available.
