Hydrive Admiral Bullhorn Steering Kit for Outboards in very narrow engine wells (OBKIT1-COMPACT)

In stock
SKU: OBKIT1COMPACT
(0)
£1,360.00 inc. VAT

Got questions?

Feel free to Get in touch

Ask an expert

Email 01980624512

Hydrive is not to be compared to any other outboard steering brand on the market.

This is a full Commercial grade Hydrive Admiral steering kit with high specification line bored chromed brass steering cylinder, stainless shaft steering helm etc.

At 492mm width, the Hydrive Compact cylinder is specifically designed for narrow outboard wells, where a conventionally sized hydraulic steering cylinder won't fit.

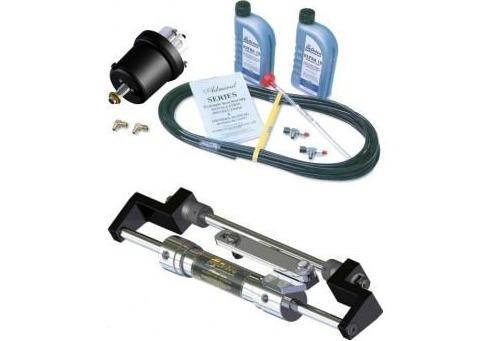

The Complete Kit comprises:

  • Model 401 Helm

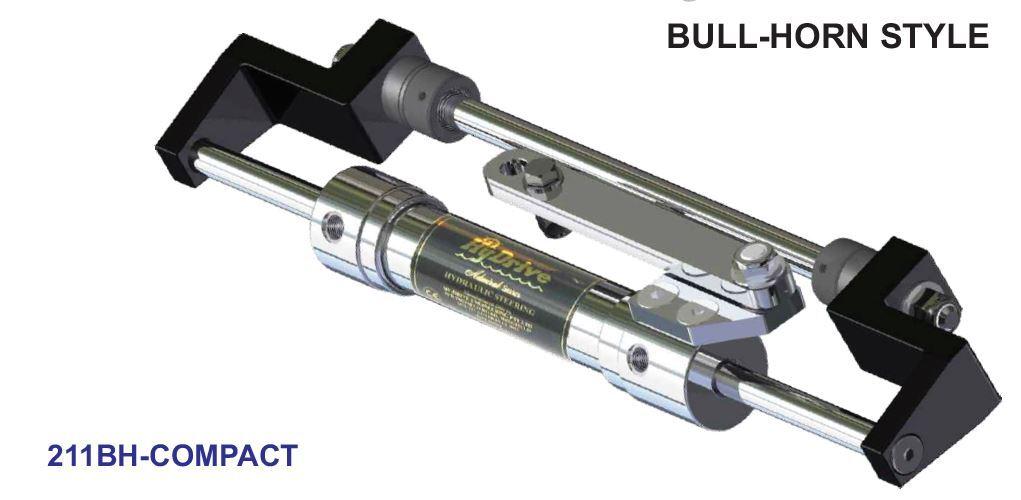

  • Model 211BH-COMPACT cylinder

  • 2 litres ULTRA-15 fluid

  • 15Mtrs 3/8” OD Nylon tubing

  • Bleeding Kit

  • All fittings

  • Installation Manual

  • Packed weight 15Kg

Wheel Turns lock to lock with 401 helm = 4.8

Rated for single outboards up to 250hp

Note: limited cylinder stroke = reduced outboard steering angles. This should only be used for engine wells that cannot be fitted with other full stroke models.

Please note that some Hydrive products are held in a remote warehouse, so it may take a few more days for delivery. If your requirement is urgent, please call us before ordering on 01980-624512.

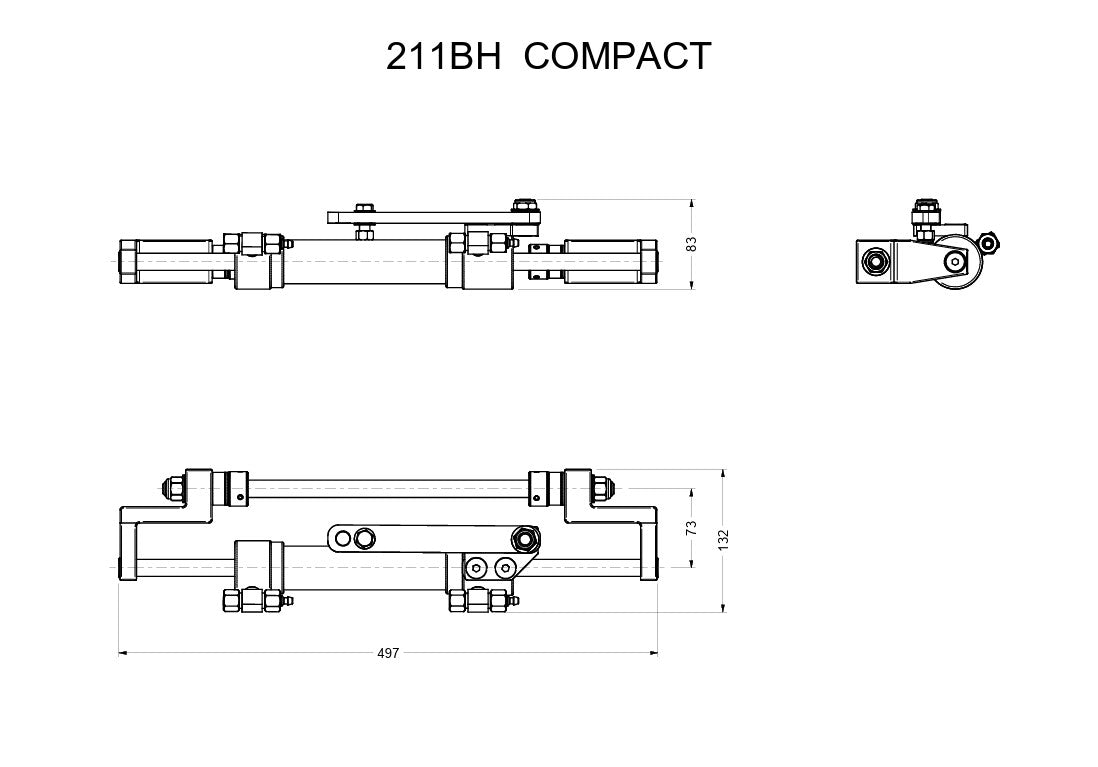

Please click HERE for full Data Sheet with dimensions
  • Type Steering & Controls
  • Vendor HyDrive
  • SKU OBKIT1COMPACT
  • Barcode 97410402

No compatibility information available.
