HyDrive XT Admiral Bullhorn Steering Kit for Outboards up to 350hp (OBKIT1-XT)
Got questions?
Feel free to Get in touch
Ask an expert

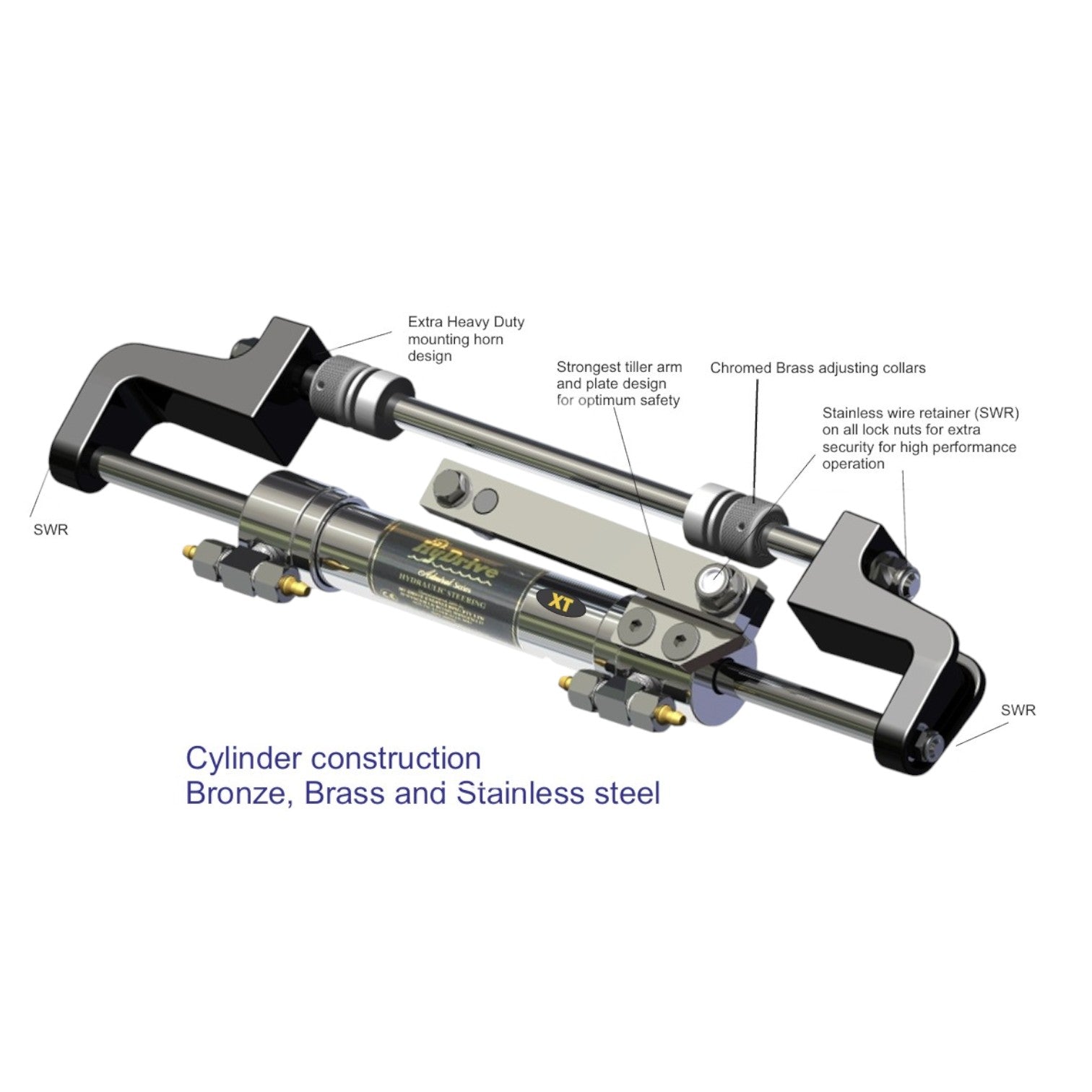

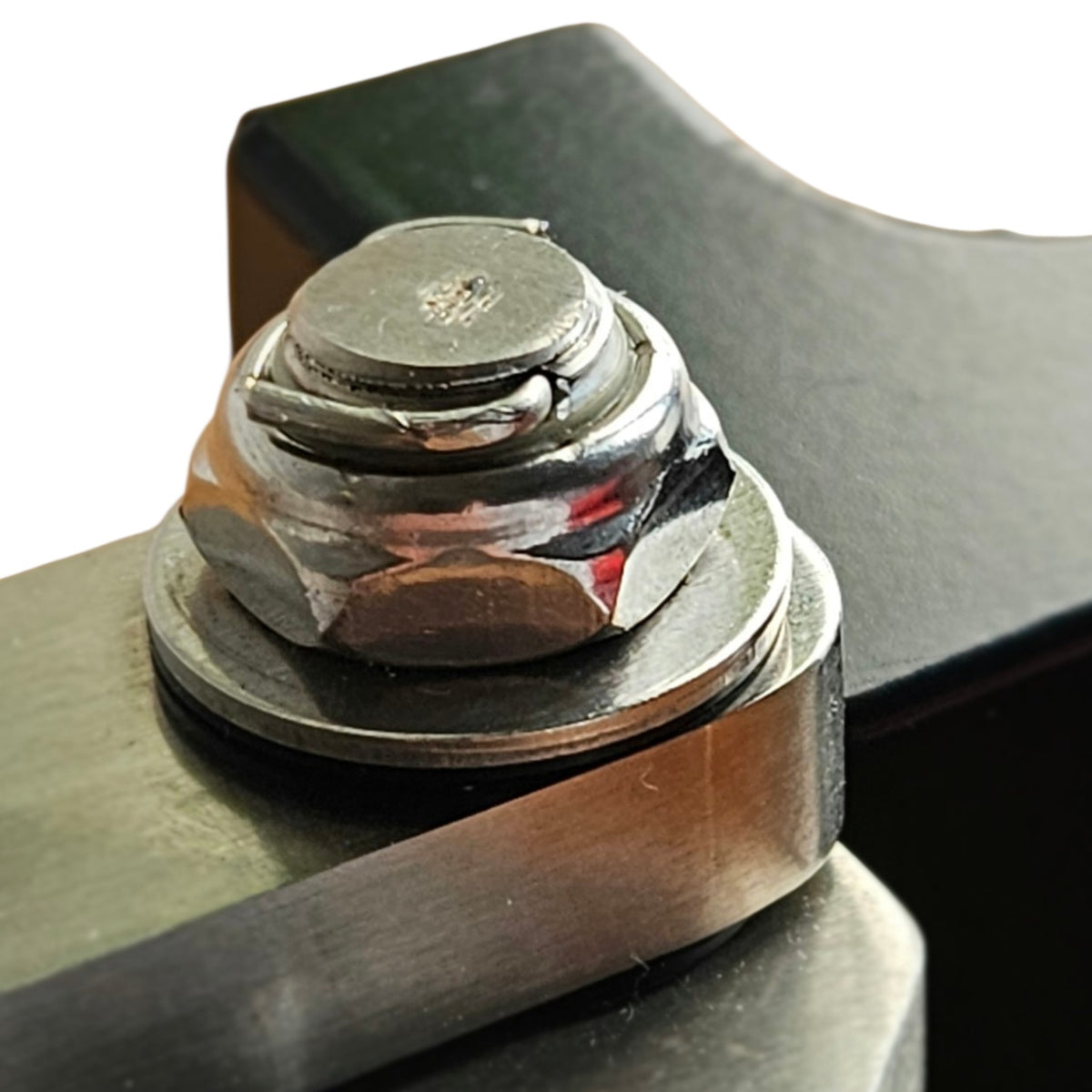

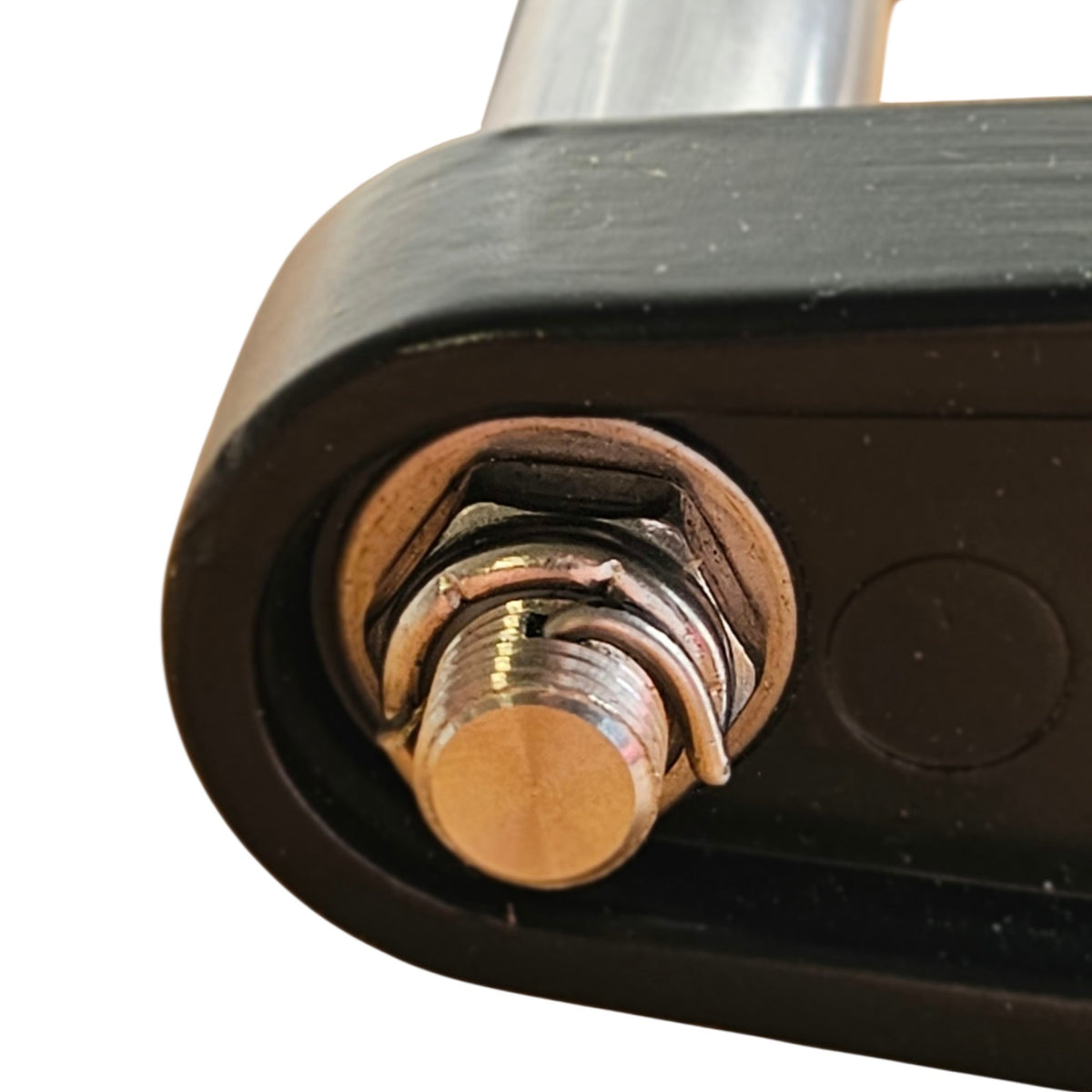

HyDrive's "extra security" version of the 211BH is designed for extremes. The 211BH-XT Bull Horn is made from composite, alloy, brass and stainless steel. It's supplied with split pin security on all threaded items, ensuring that vibration and shocks from severe long term pounding cannot threaten the integrity of the unit. The 401 Helm has a stainless steel steering wheel shaft (not aluminium), precision machined cast iron piston block and highly efficient non-return valves for non feedback of helm unit - eliminates all torque from the steering cylinder.
The OBKIT1-XT Bullhorn Kit is for outboards up to 350hp (single installation) or 700hp (counter rotating pairs). See DATASHEET

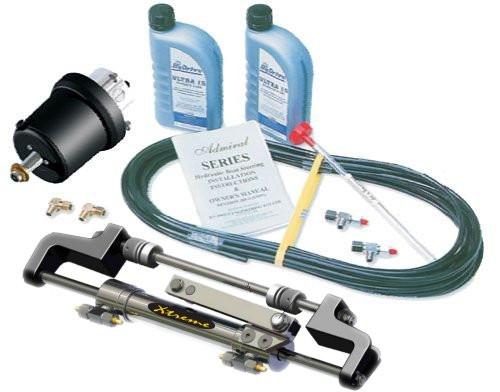

Kit Includes:

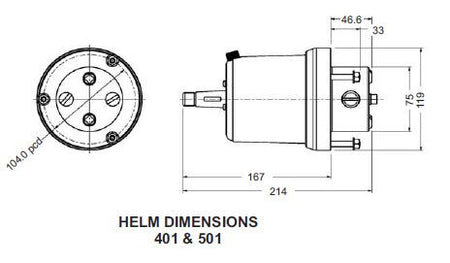

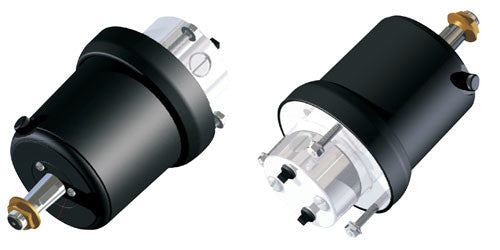

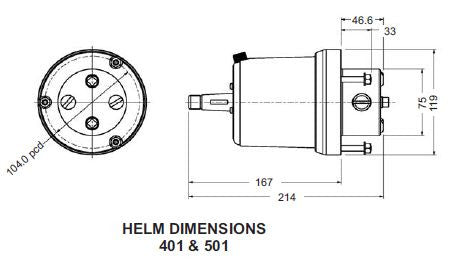

- 401Helm: 28cc/rev In-built Lock valve

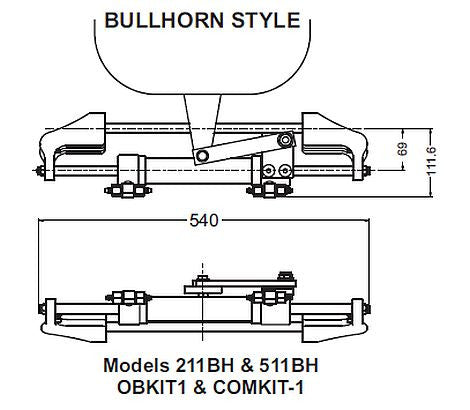

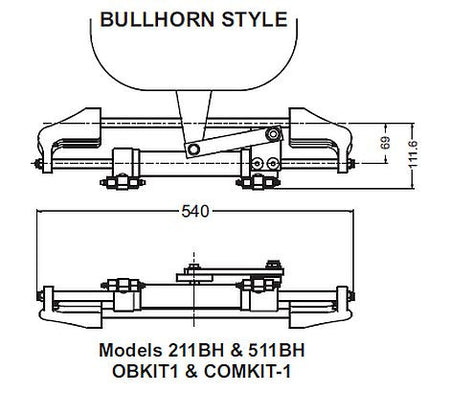

- Model 211BH-XT cylinder: Capacity:- 154cc Stroke:- 203mm
- 2 litres ULTRA-15 fluid
- 12 mtrs 3/8” OD Nylon tubing
- Bleeding Kit
- All fittings
Please note that some Hydrive products are held in a remote warehouse, so it may take a few more days for delivery. If your requirement is urgent, please call us before ordering on 01980-624512.
HyDrive's home is Australia where recreational and commercial boats often operate days from onshore support. Systems and components are tough, reliable, made from quality materials and designed for easy on the water serviceability. HyDrive has built an enviable worldwide reputation, in addition to being used by experienced recreational sailors systems can be found on Pilot boats, commercial fishing vessels and Olympic Sailing Team support RIBs etc.. Want a high quality dependable steering system? Fit HyDrive.
- Type Steering & Controls
- Vendor HyDrive
- SKU OBKIT1XT
Compatible With:
- Evinrude Outboards
- Johnson Outboards
- Tohatsu Outboards
- Honda Outboards
- Mariner Outboards
- Mercury Outboards
- Suzuki Outboards
- Selva Outboards
- Yamaha Outboards
