HyDrive Admiral Bracket Mount Steering Kit for Outboards up to 235hp


HyDrive Admiral Bracket Mount Steering Kit for Outboards up to 235hp


HyDrive's home is Australia where recreational and commercial boats often operate days from onshore support. Systems and components are tough, reliable, made from quality materials and designed for easy on the water serviceability.  HyDrive has built an enviable worldwide reputation, in addition to being used by experienced recreational sailors systems can be found on Pilot boats, commercial fishing vessels and Olympic Sailing Team support RIBs etc.. Want a high quality dependable steering system? Fit HyDrive.

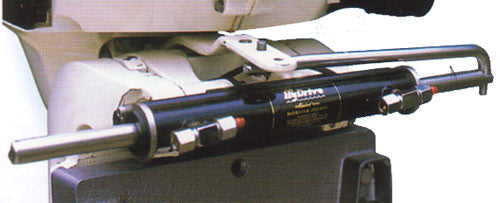

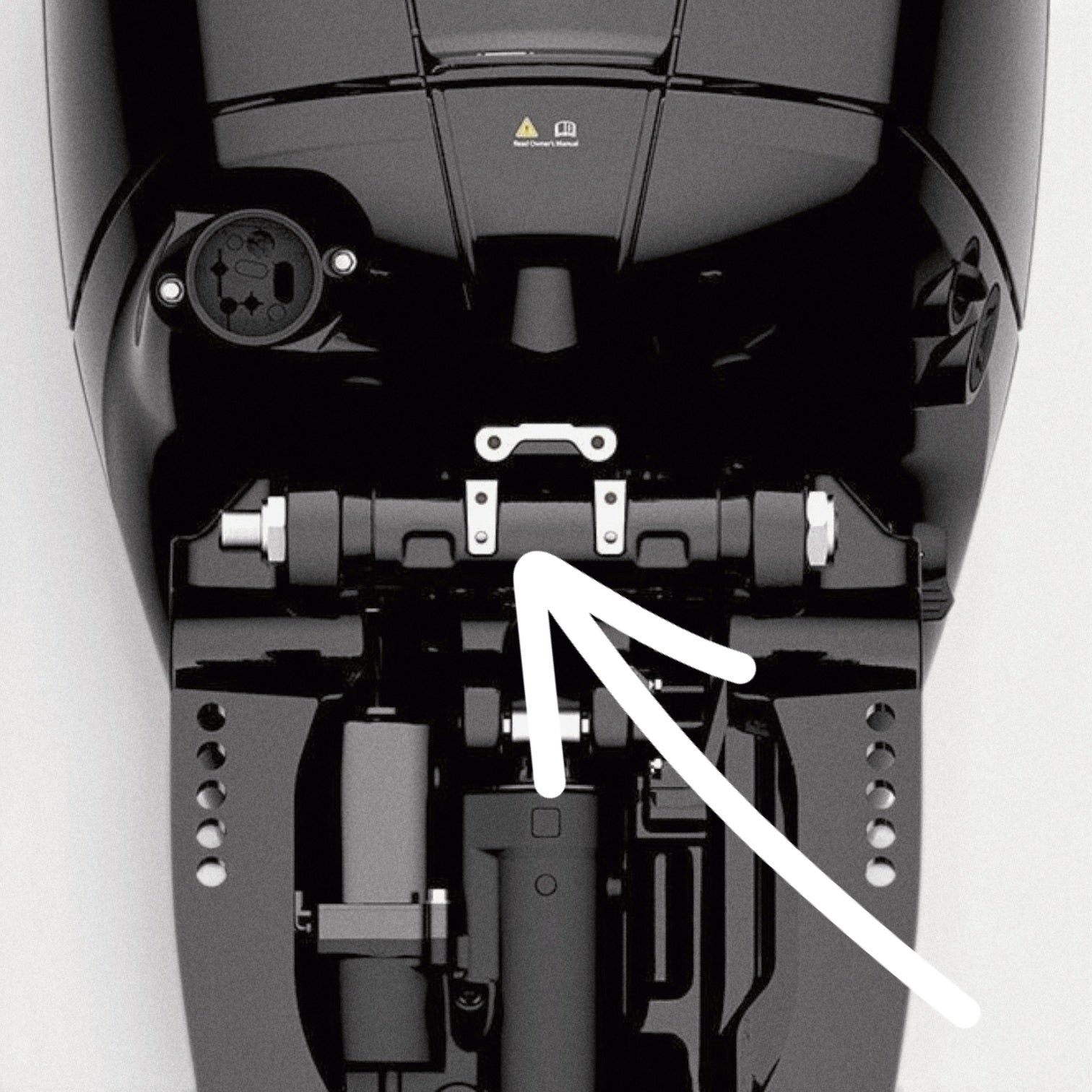

The HyDrive Admiral Series offers a chromed brass bronze and stainless steel cylinder with a stainless shaft helm - truly built for the toughest marine environment. The OBKIT5 bracket mount cylinder kit is ideal for tight splashwell installations and is fixed to the 4 holes often found on the front of medium and large Outboard Motor transom brackets. It is rated up to 200hp with a single installation, and 400hp with a counter-rotating pair.

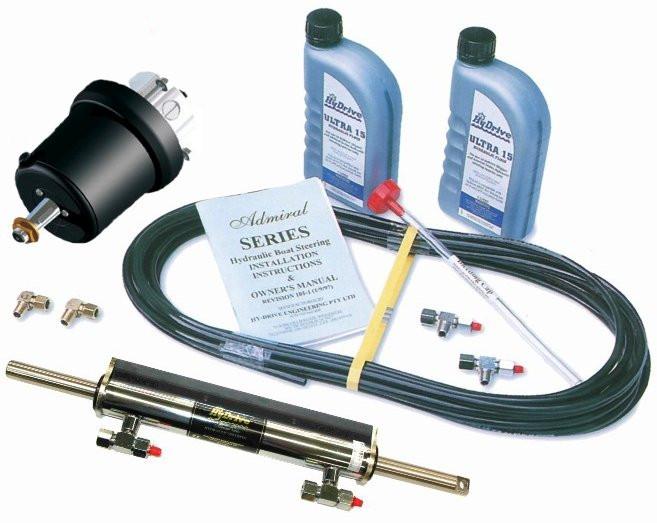

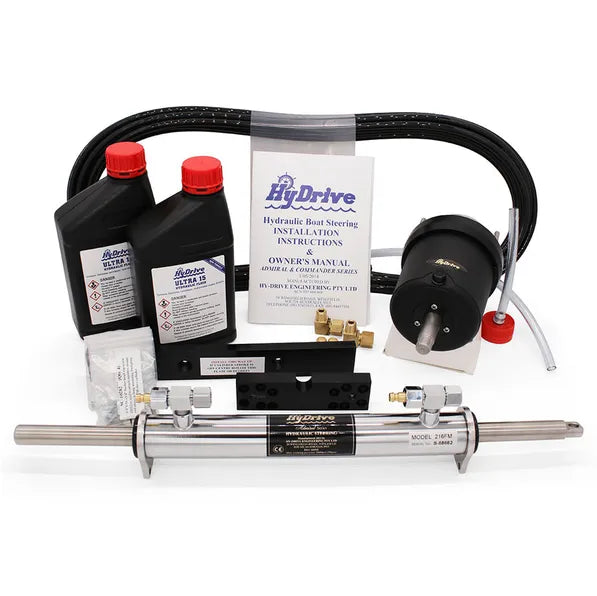

Kit Includes:

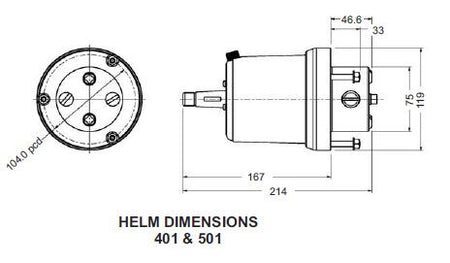

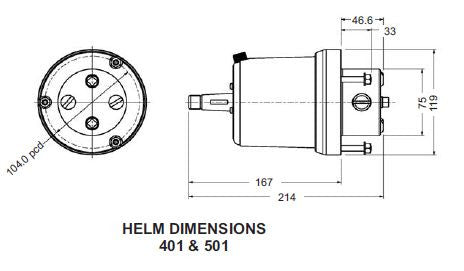

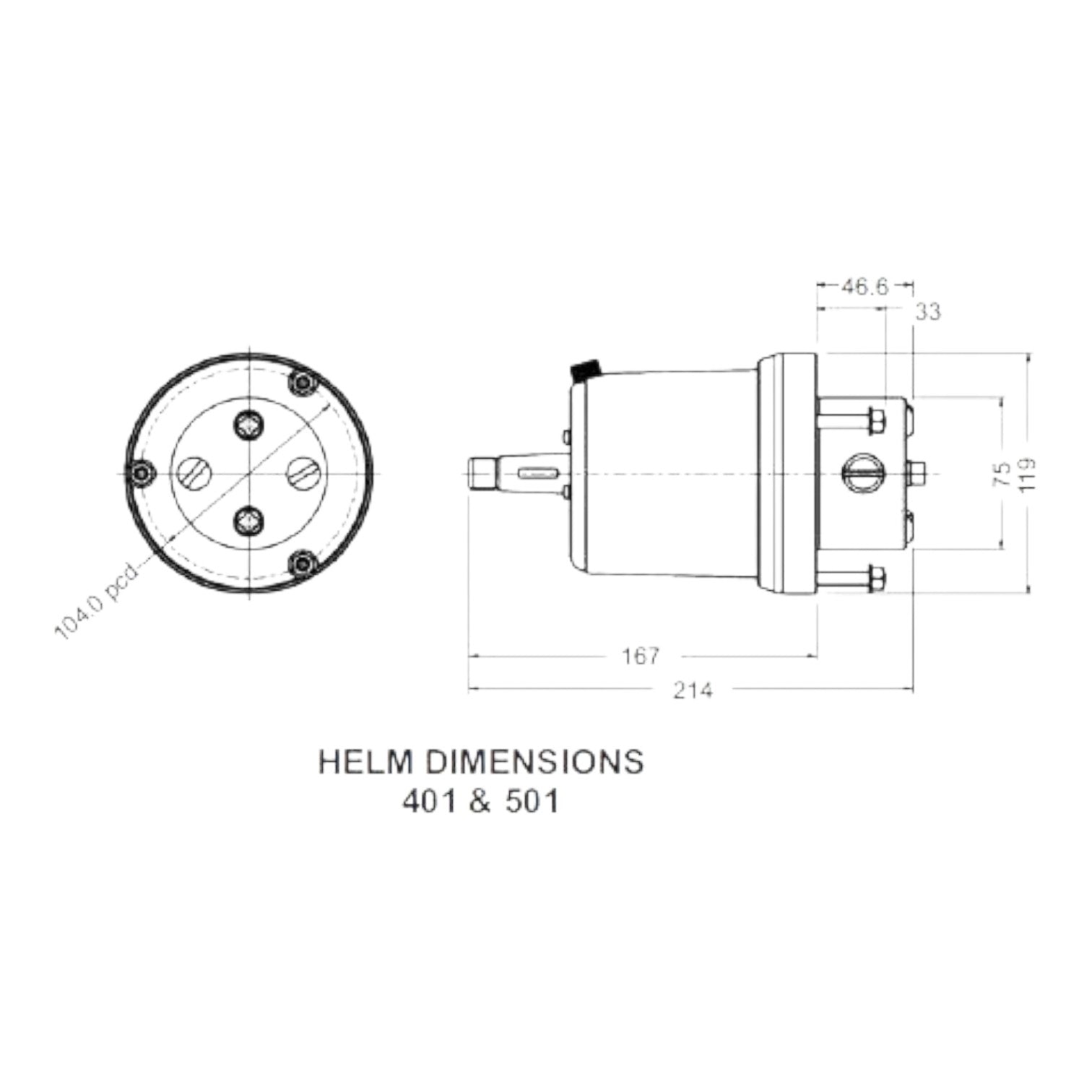

  • 401Helm:  28cc/rev In-built Lock valve

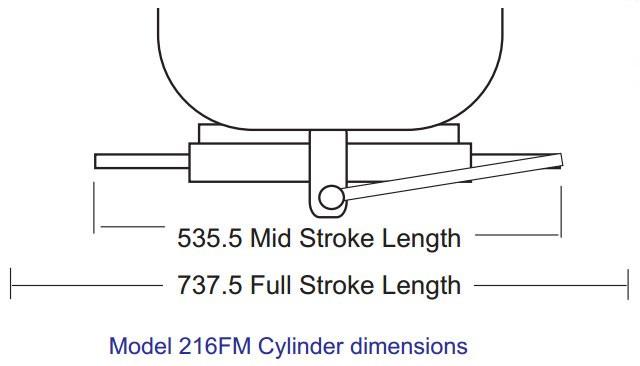

  • Model 216FM cylinder: Capacity:- 154cc Stroke:- 203mm
  • 2 litres ULTRA-15 fluid
  • 12 mtrs 3/8” OD Nylon tubing
  • Bleeding Kit
  • All fittings

WHEEL TURNS lock to lock with the standard 401 helm = 4.9. Alternatively, the 402 helm can be supplied = 3.9 Turns. Please specify upon ordering.
