HyDrive Admiral Balanced Cylinder Steering Kit for Inboards or Jets (IBKIT1)


HyDrive Admiral Balanced Cylinder Steering Kit for Inboards or Jets (IBKIT1)


HyDrive's home is Australia where recreational and commercial boats often operate days from onshore support. Systems and components are tough, reliable, made from quality materials and designed for easy on the water serviceability.  HyDrive has built an enviable worldwide reputation, in addition to being used by experienced recreational sailors systems can be found on Pilot boats, commercial fishing vessels and Olympic Sailing Team support RIBs. Want a high quality dependable steering system? Fit HyDrive.

Suitable for Inboard rudders or jets, the IBKIT1 is the complete standard cylinder inboard kit.

This kit contains the 210 balanced cylinder made of chrome-plated brass, bronze and stainless steel and is ideally suited to both pleasure and light commercial vessels with shaft drives and rudders. Max. rudder torque 85KgM.

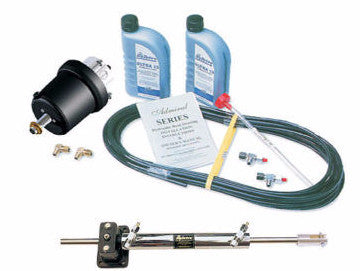

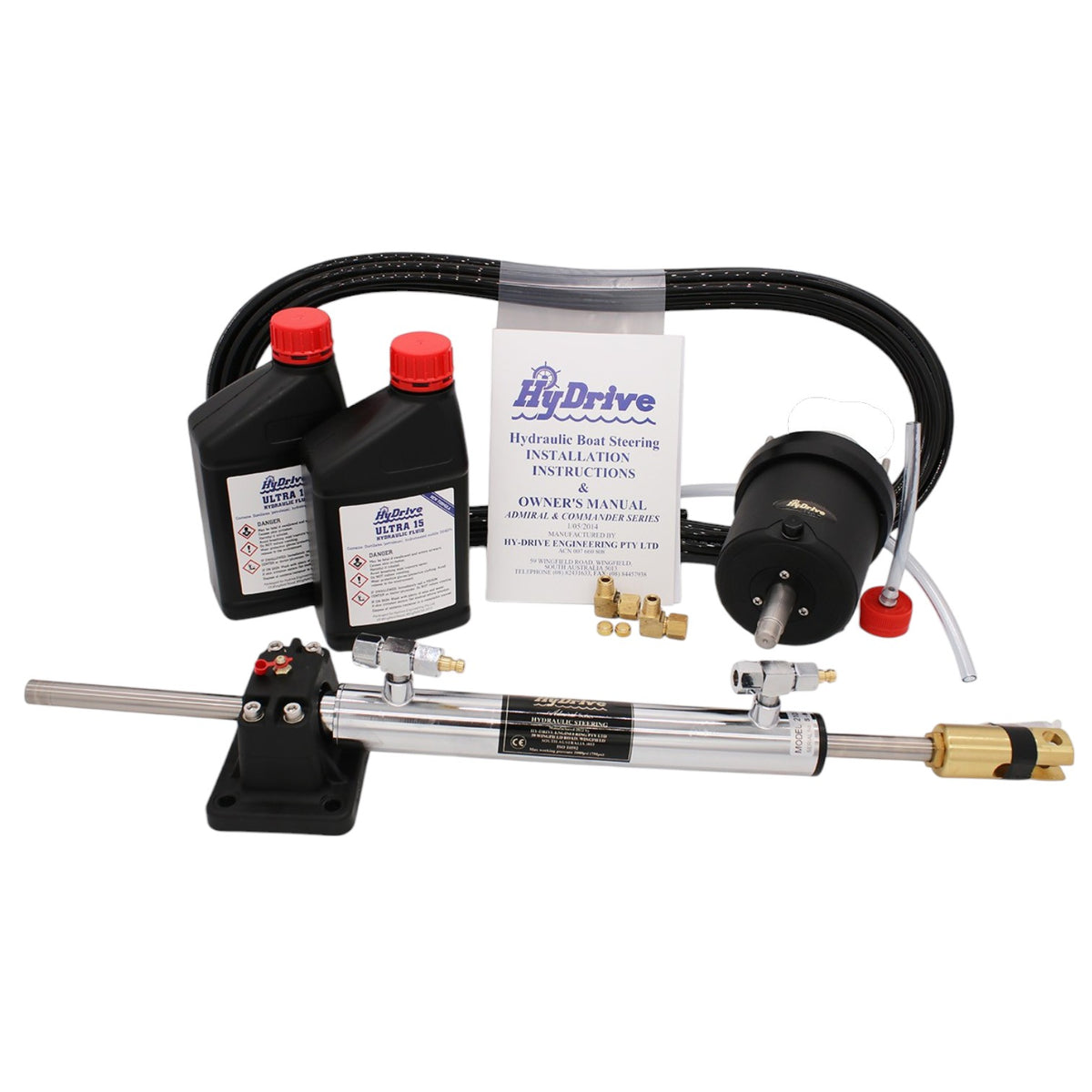

Kit Includes:

  • 401Helm:  28cc/rev In-built Lock valve

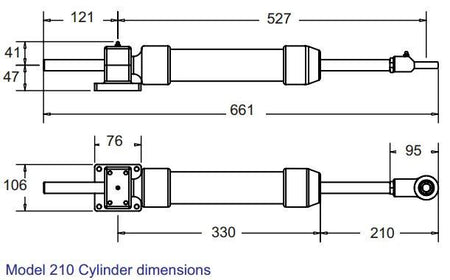

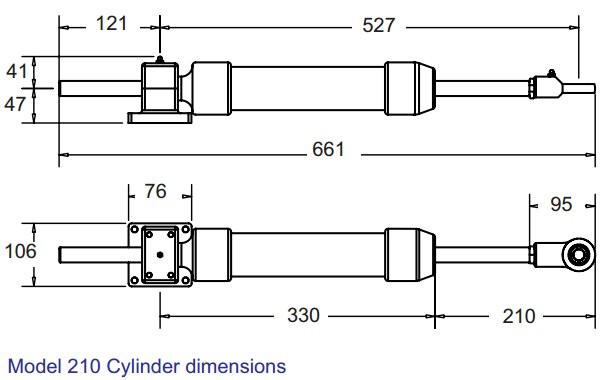

  • Model 210N8 cylinder: Capacity:- 154cc Stroke:- 204mm
  • 2 litres ULTRA-15 fluid
  • 12 mtrs 3/8” OD Nylon tubing
  • Bleeding Kit
  • All fittings

WHEEL TURNS lock to lock with the standard 401 helm = 5.5. Alternatively, the 402 helm can be supplied = 4.4 Turns. Please specify upon ordering.

Please email us (info@specialistsmallcraft.com) to request our rudder torque questionnaire before purchasing to ensure you select the correct steering system.
