HyDrive

HyDrive Admiral Balanced Cylinder Steering Kit for Inboards or Jets (IBKIT3)

Backorder
SKU: IBKIT3
(0)
£1,200.00 GBP inc. VAT
This product is available for backorder. The approximate shipping time for this product is 4 days.

Got questions?

Feel free to Get in touch

Ask an expert

Email 01980624512

HyDrive's home is Australia where recreational and commercial boats often operate days from onshore support. Systems and components are tough, reliable, made from quality materials and designed for easy on the water serviceability.  HyDrive has built an enviable worldwide reputation, in addition to being used by experienced recreational sailors systems can be found on Pilot boats, commercial fishing vessels and Olympic Sailing Team support RIBs etc.. Want a high quality dependable steering system? Fit HyDrive.

This kit is suitable for Inboard rudders or jets, IBKIT3 is a complete balanced cylinder inboard kit.

It contains the 216 balanced cylinder made of chrome-plated brass, bronze and stainless steel for more direct steering and is ideally suited to both pleasure and light commercial vessels with shaft drives and rudders. Max. rudder torque 80KgM.

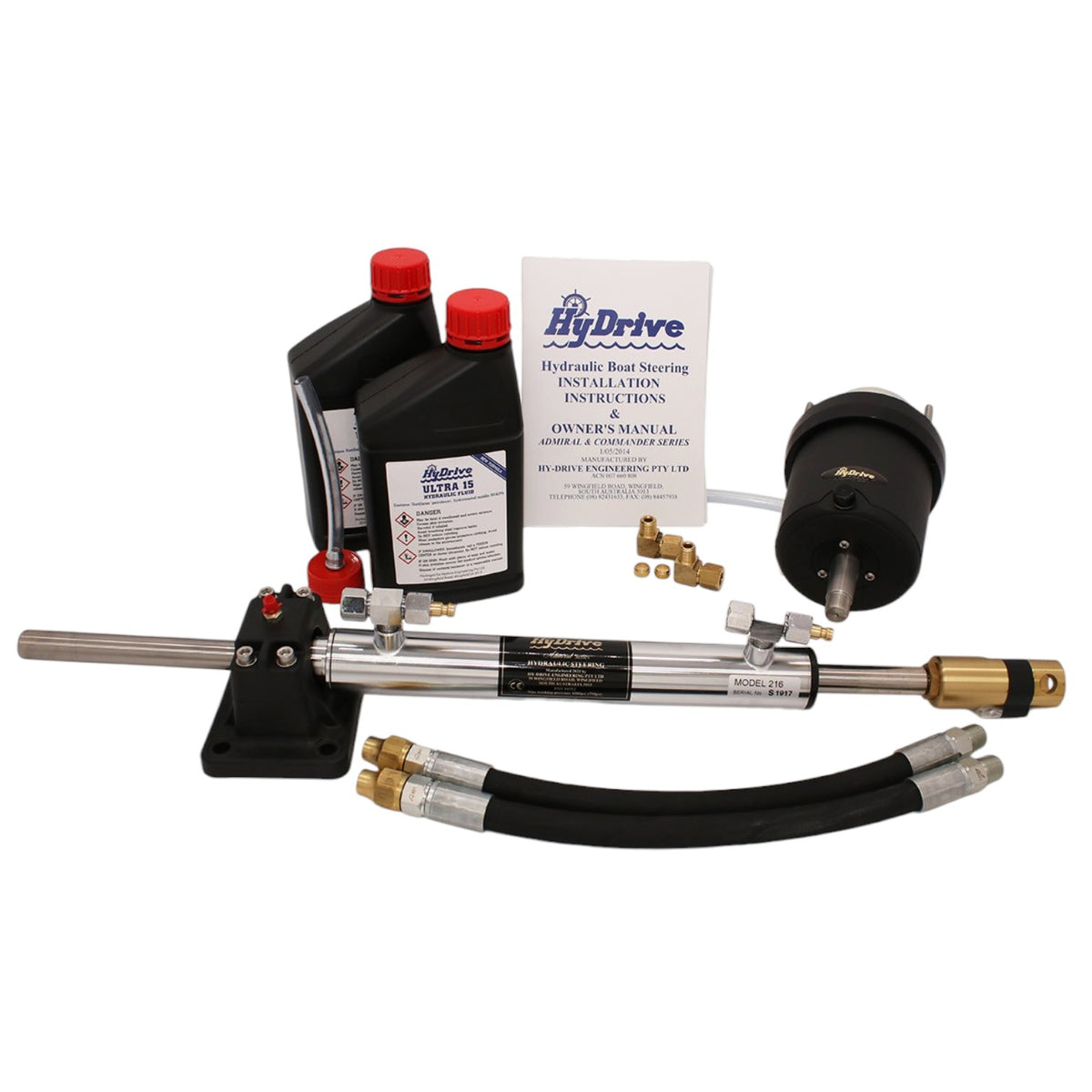

Kit Includes:

  • 401Helm:  28cc/rev In-built Lock valve
  • Model 216N8 cylinder: Capacity:- 137cc Stroke:- 204mm
  • 2 litres ULTRA-15 fluid
  • 12 mtrs 3/8” OD Nylon tubing
  • Bleeding Kit
  • All fittings

WHEEL TURNS lock to lock with the standard 401 helm = 4.9. Alternatively, the 402 helm can be supplied = 3.9 Turns. Please specify upon ordering.

Please email us (info@specialistsmallcraft.com) to request our rudder torque questionnaire before purchasing to ensure you select the correct steering system.

Please note that some Hydrive products are held in a remote warehouse, so it may take a few more days for delivery. If your requirement is urgent, please call us before ordering on 01980-624512.
  • Type Steering & Controls
  • Vendor HyDrive
  • SKU IBKIT3
  • Barcode 26665294

Compatible With:

  • Yanmar
  • Volvo Penta
  • MerCruiser
