512T Cylinder
Got questions?
Feel free to Get in touch
Ask an expert

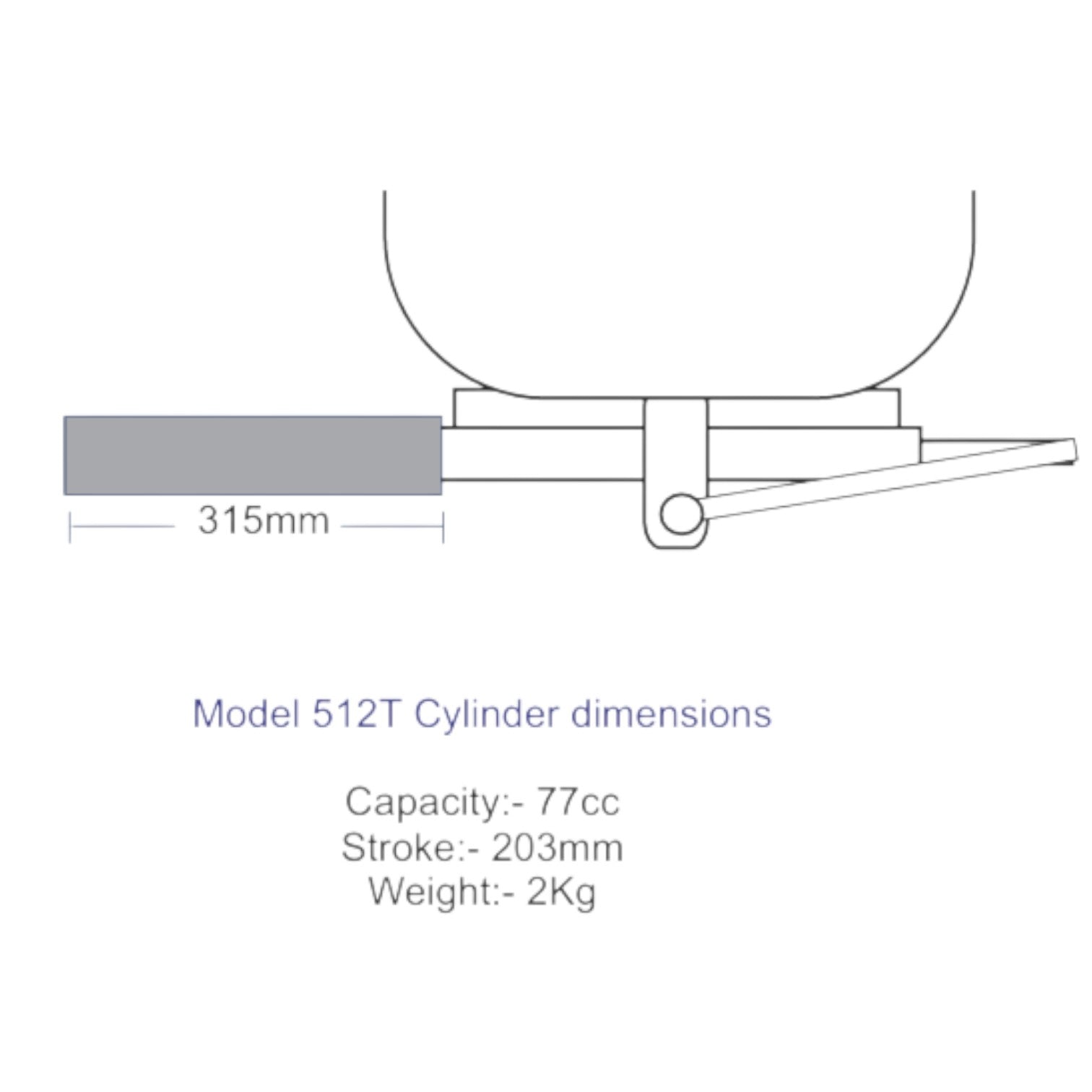

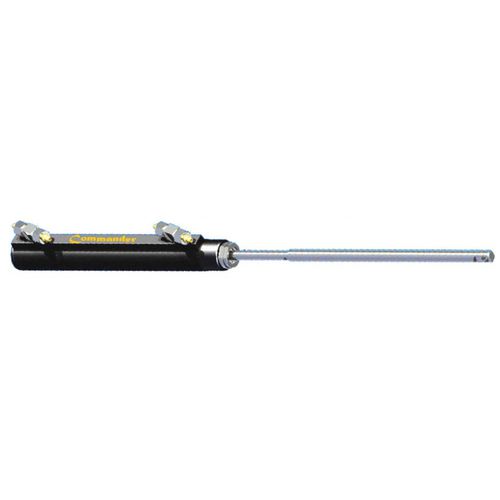

The 512T Commander Series cylinder is designed to screw directly onto the outboard motor’s tilt-tube or pivot-tube, in exactly the same way as a conventional cable-steering unit. Like other tube-mount cylinders, it requires very little clearance to the side of the outboard motor. It is suitable for leisure boats with single outboards up to 135HP, or twin outboards up to 250HP TOTAL (counter-rotating).

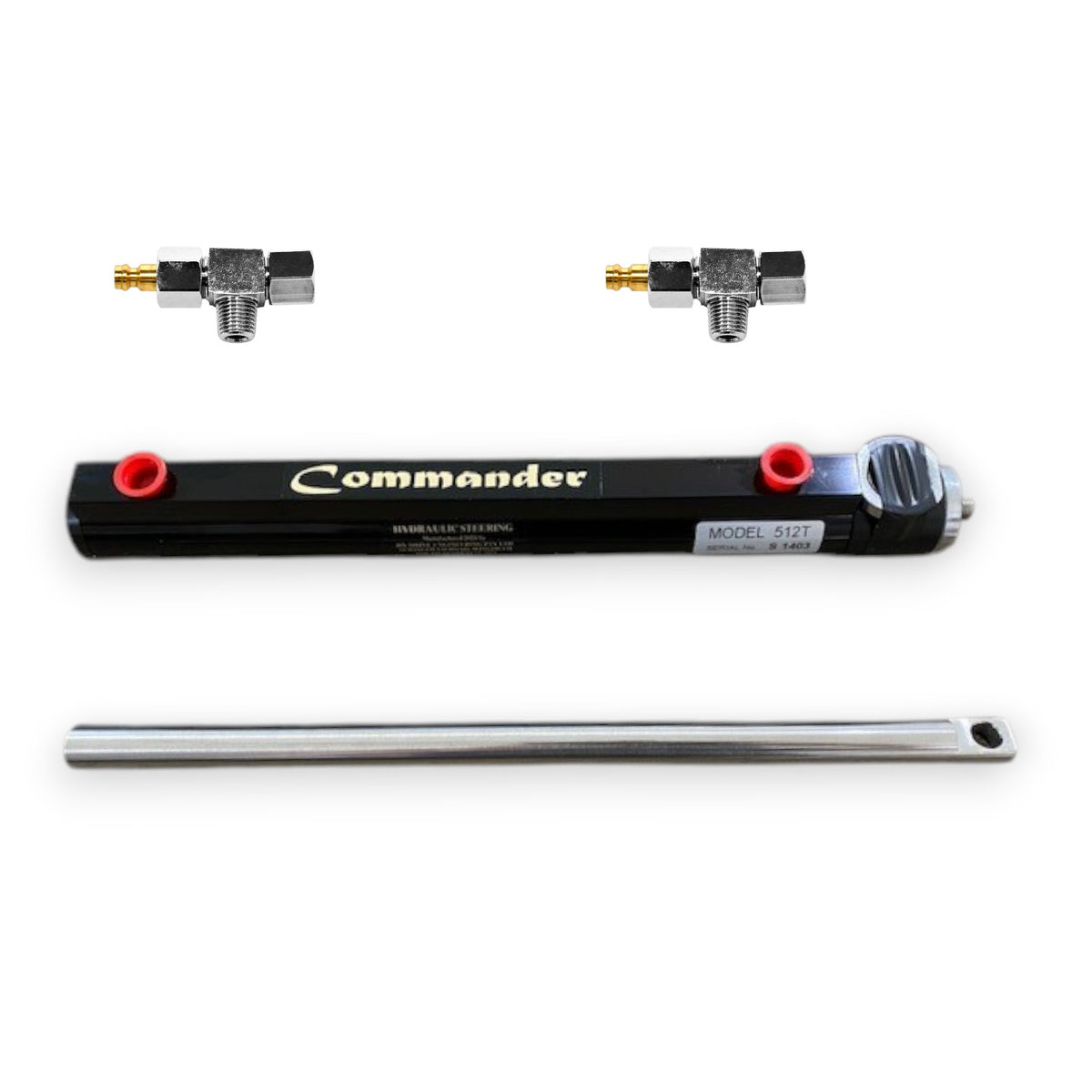

Supplied complete with 2x HyDrive Bleeder tees with fittings to suit HyDrive N8 nylon hose and MSH-5 flexi-hose O-Ring fittings.
Must only be used with an existing HyDrive steering systems. If you have existing components of other brands, please do not order. For the complete steering kit including this cylinder, please click on this COMKIT-SPORT link.
Please click the following link for the COMKIT-SPORT Data Sheet
Please ONLY use Hydrive Ultra-15 steering fluid with Hydrive systems otherwise warranty will be void. HyDrive steering fluid is a much higher grade than other steering fluids on the market.
HyDrive's home is Australia where recreational and commercial boats often operate days from onshore support. Systems and components are tough, reliable, made from quality materials and designed for easy on the water serviceability. HyDrive has built an enviable worldwide reputation, in addition to being used by experienced recreational sailors systems can be found on Pilot boats, commercial fishing vessels and Olympic Sailing Team support RIBs etc.. Want a high quality dependable steering system? Fit HyDrive.
- Type Steering & Controls
- Vendor HyDrive
- SKU 512T
Compatible With:
- Evinrude Outboards
- Johnson Outboards
- Tohatsu Outboards
- Honda Outboards
- Mariner Outboards
- Mercury Outboards
- Suzuki Outboards
- Yamaha Outboards
- Selva Outboards
