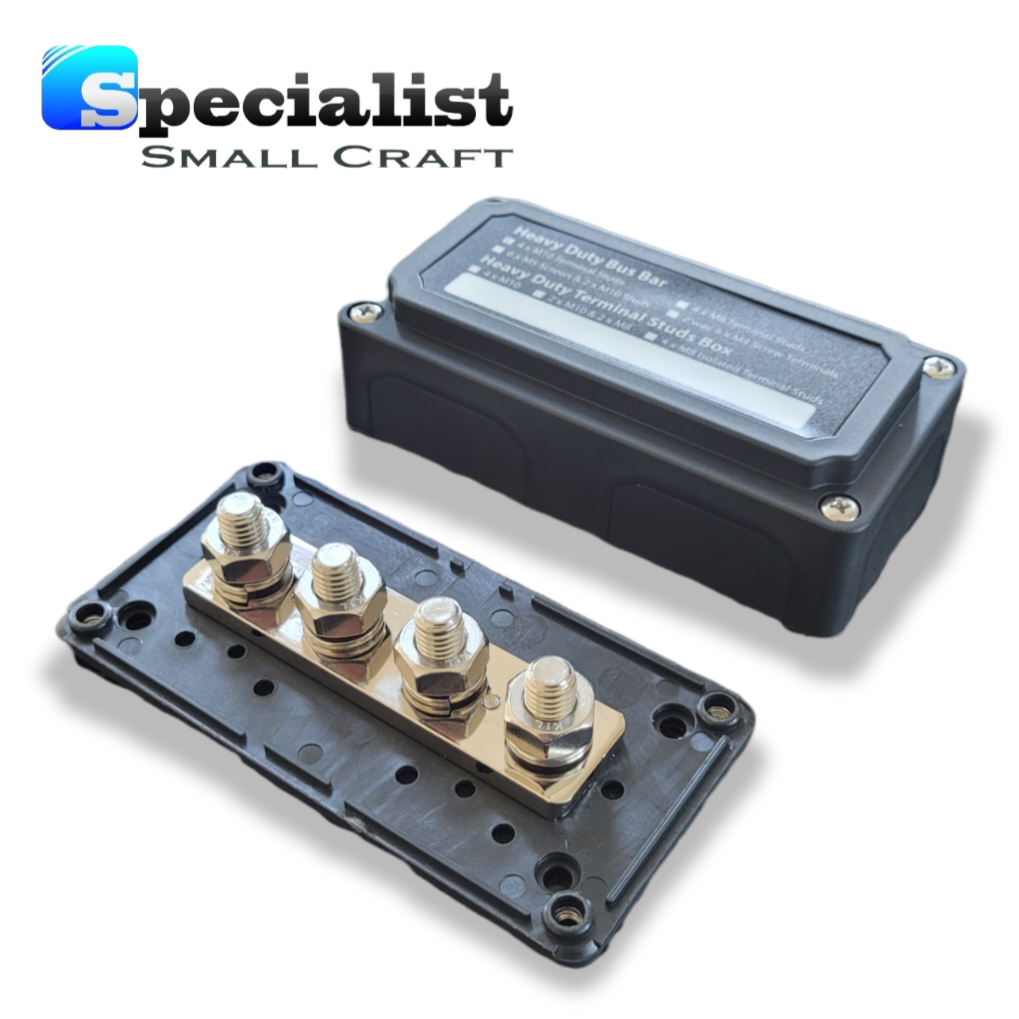

Heavy-Duty Modular Design Bus Bar Box with 4x M10 Terminal Studs

Only 3 left
SKU: YBF432M10
(0)
£47.95 GBP inc. VAT

Got questions?

Feel free to Get in touch

Ask an expert

Email 01980624512

Features

  • Highest amperage rated bus bar (300A) with M10 terminal studs

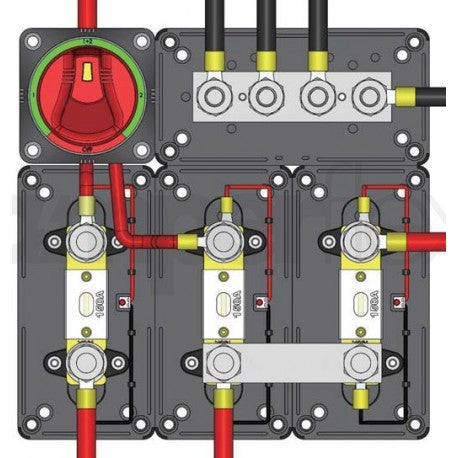

  • Module box design for easy wiring configurations
  • Glass Fibre reinforced Nylon base and enclosure ensures great mechanical strength and durability
  • Removable windows for unobstructed wiring
  • Blank write-on space on the top allows easy labelling for each branch

Specification

  • Base & Cover Material | Nylon, Glass Fibre reinforced
  • Bus Material | Brass, Nickel plated
  • Max Operating Voltage | DC 48V
  • Max Continuous Amp | 300A
  • Terminal Stud Size 4x M8 (5/16")
  • Dimensions (L x W x H) | 138 x 69 x 44.5mm
  • Vendor Specialist Small Craft
  • SKU YBF432M10
  • Barcode 72997730

No compatibility information available.
