YIS

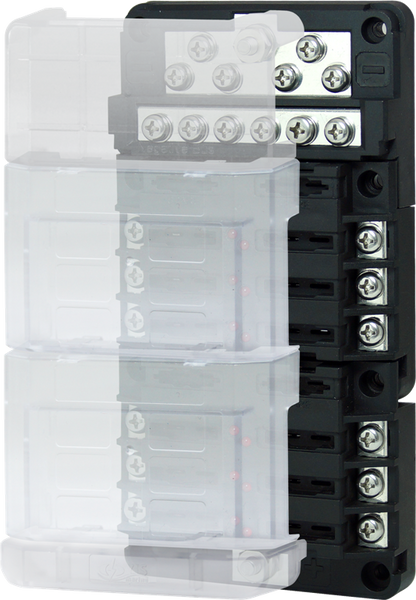

12-way Modular Design Blade (ATP/ATO/ATC) Fuse Block with Bus Bar suitable for Marine

Only 1 left
SKU: BF275
(0)
£56.95 inc. VAT

Got questions?

Feel free to Get in touch

Ask an expert

Email 01980624512

The BF27x series are compact and solid blade fuse blocks designed for 24-hour circuits. The fuse blocks come with blown fuse indication LEDs, clear cover with recessed areas for labels.

Two Modules for all: YIS Marine exclusive modular design – two basic modules can be combined into 4 popular fuse blocks (and more depending on specific needs). The assembly is very simple and can be done by consumers alone (instruction manual included). This not only gives consumers flexibility to expand their current fuse block, but also allows retailers to save precious shelf in the store.

Features

  • Accepts Automotive Blade Fuses (ATP/ATC/ATO)
  • Modular Design saves shelf space (2 items can be combined into 4 models)
  • Transparent cover with recessed area for label stickers
  • 60 pieces assorted label stickers set included
  • Storage for 2 spare fuses (for each 6P block)
  • LED indication of blown fuses
Specification
  • Voltage Rating | DC 32V Max
  • Amp Rating per Branch | 30A (Screw Terminals)
  • Max Cumulative Amp | 100A per block
  • Terminal Stud Size | M5 (3/16")
  • Screw Size | M4 (5/32”)

  • Dimensions (L x W x H) | 169 x 86 x 41mm


  • Vendor YIS
  • SKU BF275
  • Barcode 96794051

No compatibility information available.
